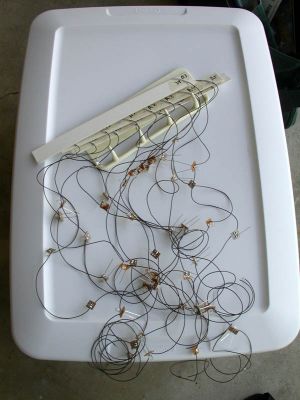

These are the strands of LEDs. I made three different kinds: Type A had 3 white lights, type B had 2 white and 1 blue, and type C had 1 white and 2 blue. I made 19 type As, 16 type Bs, and 2 type Cs. Each sleeve used 3 type As, the back used 3 As and 6 Bs, and each side of the front used 5 As, 5 Bs and 1 C. The strands for each of the portions radiated out from a hub, forming a package I called a bundle. The five bundles were all connected to one of the battery packs, concealed in his shoulder pad. The switch wires also go to that battery pack; the wires were strung down inside his sleeve and the switch is concealed in his glove. The other battery pack on the other shoulder has no connection except to the main pack. Altogether, the pack with the wires has 14 wires to it, the other pack has only 2. The batteries are removable, as they have to be recharged after every show.
